Armoured
Indoor
Outdoor
Halogen Free
Dielectric
Direct Burial

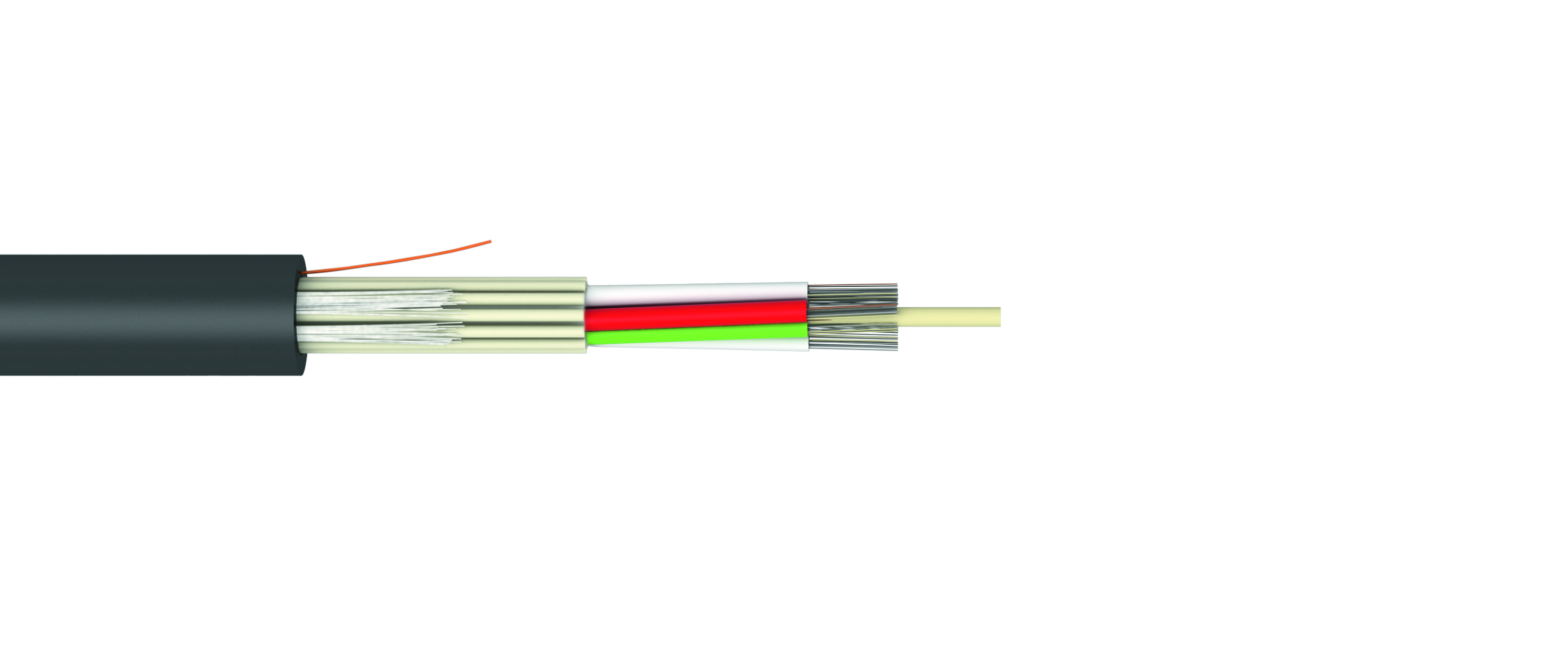

FRP dielectric central strength member.
Gel filled PBT loose tube with optical fibers.
FRP dielectric strength member.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Mac fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| LF0I | 48 | 2.3 | 10.6 | 100 | 4,200 | 4,000 |
| LF0I | 48 | 2.3 | 11 | 131 | 4,200 | 4,000 |
| FF0I | 72 | 2.3 | 12.1 | 134 | 6,500 | 4,000 |
| FF02 | 72 | 2.3 | 12.5 | 169 | 6,500 | 4,000 |
| GF0I | 96 | 2.3 | 14 | 181 | 9,000 | 4,000 |
| GF02 | 96 | 2.3 | 14.4 | 223 | 9,000 | 4,000 |
| HF0I | 144 | 2.3 | 16.9 | 256 | 11,600 | 4,000 |
| HF02 | 144 | 2.3 | 17.3 | 307 | 11,600 | 4,000 |
Installation: -15 to +50°C | Operation: -30 to +70°C | Storage: -30 to +70°C
CLT FRP
