Indoor
Outdoor
Halogen Free
FTTx
Duct

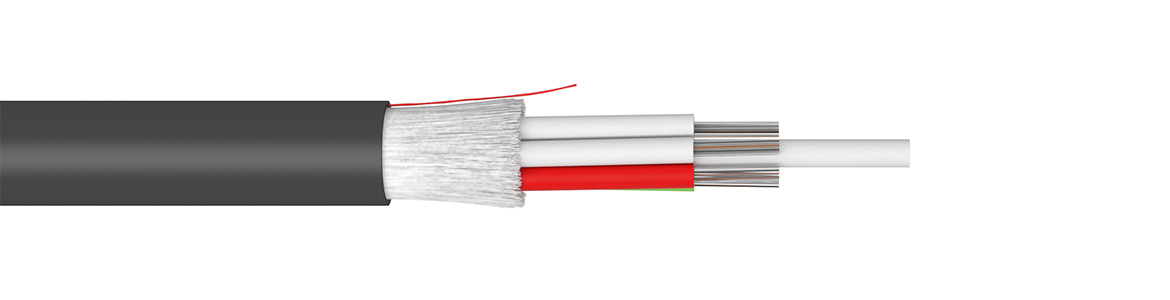

FRP dielectric central strenght member.
Gel filled PBT loose tube with optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| UE0I | 60 | 1.7 | 7.9 | 56.0 | 1,300 | 3,000 |
| UE02 | 60 | 1.7 | 7.9 | 72.0 | 1,300 | 3,000 |
| CE0I | 72 | 1.7 | 8.4 | 65.0 | 2,000 | 3,000 |
| CE02 | 72 | 1.7 | 8.4 | 83.0 | 2,000 | 3,000 |
| PE0I | 96 | 1.7 | 9.5 | 87.0 | 4,300 | 3,000 |
| PE02 | 96 | 1.7 | 9.5 | 107.0 | 4,300 | 3,000 |
| RE0I | 144 | 1.7 | 12.2 | 127.0 | 7,300 | 3,000 |
| RE02 | 144 | 1.7 | 11.8 | 151.0 | 7,300 | 3,000 |
| VE0I | 216 | 1.7 | 11.9 | 116.0 | 2,200 | 2,000 |
| VE02 | 216 | 1.7 | 11.9 | 145.0 | 2,200 | 2,000 |
| LE0I | 48 | 2.3 | 8.9 | 63.0 | 1,000 | 2,000 |
| LE02 | 48 | 2.3 | 8.9 | 83.0 | 1,000 | 2,000 |
| FE0I | 72 | 2.3 | 10.6 | 89.0 | 1,900 | 2,000 |
| FE02 | 72 | 2.3 | 10.6 | 112.0 | 1,900 | 2,000 |
| GE0I | 96 | 2.3 | 11.9 | 113,0 | 2,500 | 2,000 |
| GE02 | 96 | 2.3 | 11.9 | 141,0 | 2,500 | 2,000 |
| HE0I | 144 | 2.3 | 14.8 | 170,0 | 4,000 | 2,000 |
| HE02 | 144 | 2.3 | 14.8 | 206.0 | 4,000 | 2,000 |
Installation: -15 to +50 °C | Operation: -40 to +70 °C | Storage: -40 to +70 °C
MLT improved
