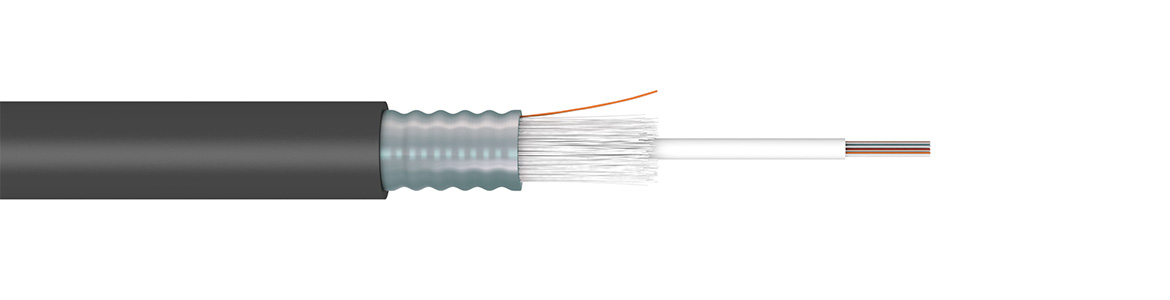

CLT CST Single Sheath
Armoured
Indoor
Outdoor
Halogen Free
Antirodent
FTTx
Direct Burial
Temperature range
Installation: -15 to +50 °C | Operation: -40 to +70 °C | Storage: -40 to +70 °C
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| BH0I | 24 | 3.0 | 9.9 | 98.0 | 2,500 | 10,000 |
| BH02 | 24 | 3.0 | 10.1 | 120.0 | 2,500 | 10,000 |
| Z144 | 24 | 3.0 | 7.7 | 70.0 | 1,100 | 10,000 |
| Z145 | 24 | 3.0 | 7.9 | 87.0 | 1,100 | 10,000 |
