Armoured
Indoor
Outdoor
Halogen Free
Antirodent
FTTx
Direct Burial

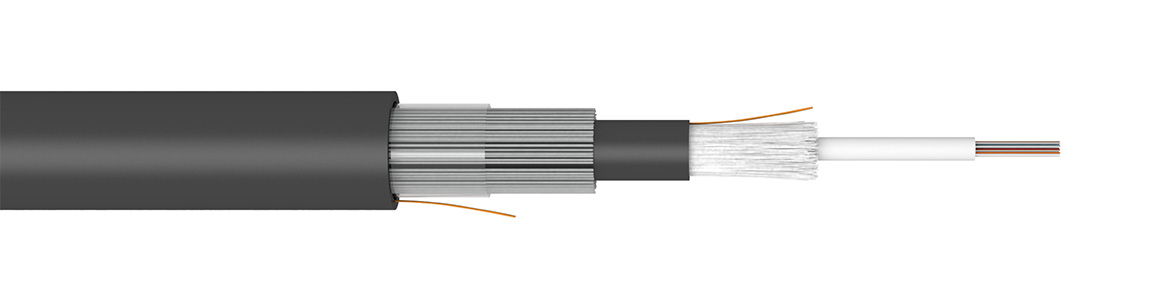

Gel filled PBT loose tube with optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH or PE inner jacket.
Steel Wire Armour (SWA).
Rip-Cord.
Water-swellable tape.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| BWPI | 24 | 3.0 | 10.7 | 157.0 | 4,000 | 4,000 |
| BWP2 | 24 | 3.0 | 10.7 | 179.0 | 4,000 | 4,000 |
| BWFI | 24 | 3.0 | 10.7 | 166.0 | 4,000 | 4,000 |
| BWF2 | 24 | 3.0 | 10.7 | 188.0 | 4,000 | 4,000 |
Installation: -15 to +50 °C | Operation: -30 to +70 °C | Storage: -30 to +70 °C
MLT SWA
