  • Metalické kabely
  • Instalační

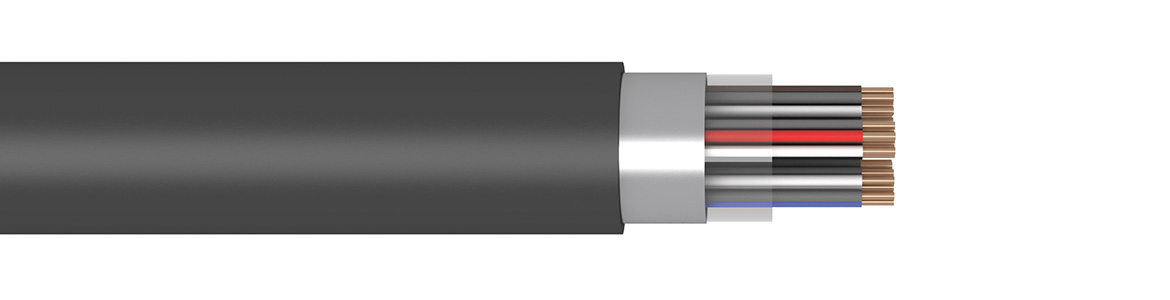

FRQKAHM (QF – INDOOR)

...x4x0.4 (0.6)

1
2
3
4
5
1

Copper wire

2

Core insulation – solid PE

3

Plastic tape

4

laminated aluminium foil

5

PVC outer jacket, black

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core.

Specification

MMD57V4

Application

» for basic phone services in analogue and digital transmission systems
» the cables with PVC jacket are designed to be placed in areas with fire spread danger

Environmental conditions

Temperature ranges for laying and assembly  0 °C  to +40 °C
Operation and store temperatures – 30 °C to +50 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.40.6
Max. loop resistanceΩ/km300 130
Insulation resistance min.GΩ.kmmin. 10min. 10
Mutual capacitancenF/km 43 ± 343 ± 3
Capacity unbalance k1 at 800 HzpF/500 m800800
Effective test voltage wire/wire at 50 Hz
V600600
Effective test voltage wire/shield at 50 HzV2,0002,000
Operating voltage Vss250250
Wire/core diameter 0.4/0.73 mm Wire/core diameter 0.6/1.07 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
1 5.5 34 2,000
5 9.3 81 2,000 8.6 74 2,000
10 10.9 120 2,000 11.2 129 2,000
15 11.7 154 2,000
25 14.4 237 2,000
50 18.4 409 2,000
75 21.8 584 1,000
100 25.2 772 1,000
