  • Metalické kabely
  • Instalační

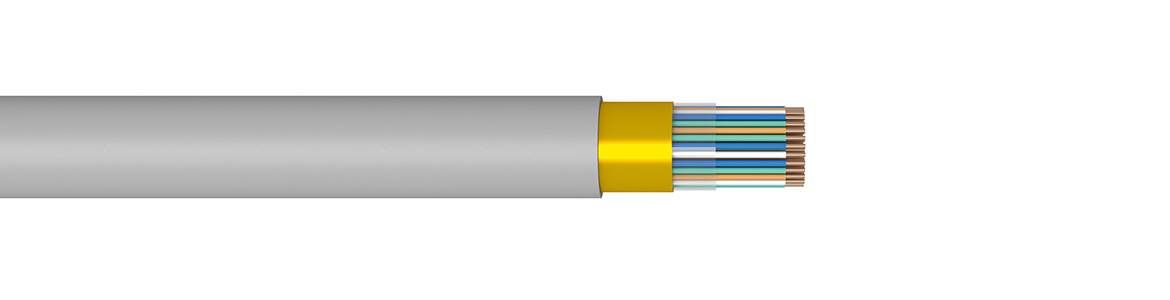

CW 1308

...x2x0.5

1
2
3
4
5
1

Copper wire

2

Core insulation – PVC

3

Plastic tape

4

Wrapping ALU/PET tape+CuSn

5

 PVC outer jacket, grey

Transmission element – twin pair twisted to units.

Specification

CW1308

Application

» connection cables in Local Area Networks and in private branch exchanges for telephony and signal transfer
» indoor cable

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Wire/core diameter 0.5/0.9 mm
Coding External diameter [mm] Standard production length [m]
2,503 5.0 2,000
2,504 5.6 2,000
2,506 6.8 1,000
2,510 8.3 1,000
2,512 9.1 1,000
2,516 10.2 1,000
2,515 9.8 1,000
2,520 10.7 1,000
2,525 11.4 1,000
2,530 12.2 1,000
2,532 12.4 1,000
2,540 15.0 1,000
2,550 17.0 1,000
2,564 16.5 1,000
2,580 22.5 1,000
2,581 27.0 1,000
2,566 25.4 1,000
2,582 30.3 1,000
2,583 33.0 1,000
2,568 35.2 1,000
2,584 39.2 1,000
Coding No. of pairs Make up
2,503 3P 3
2,504 4P 4
2,506 6P 6
2,510 10P 2 + 8
2,512 12P 3 + 9
2,516 16P 4 × (4 × 2)
2,515 15P 3 × (5 × 2)
2,520 20P 4 × (5 × 2)
2,525 25P 5 × (5 × 2)
2,530 30P 6 × (5 × 2)
2,532 32P 4 × (8 × 2)
2,540 40P 4 × (10 × 2)
2,550 50P 5 × (10 × 2)
2,564 64P 1 × (16 × 2) + 6 × (8 × 2)
2,580 80P 1 × (20 × 2) + 6 × (10 × 2)
2,581 100P 1 × (20 × 2) + 8 × (10 × 2)
2,566 128P 4 × (8 × 2) + 6 × (16 × 2)
2,582 160P 4 × (10 × 2) + 6 × (20 × 2)
2,583 200P 2 × (20 × 2) + 8 × (20 × 2)
2,568 256P 1 × (16 × 2) + 5 × (16 × 2) + 10 × (16 × 2)
2,584 320P 1 × (20 × 2) + 5 × (20 × 2) + 10 × (20 × 2)
