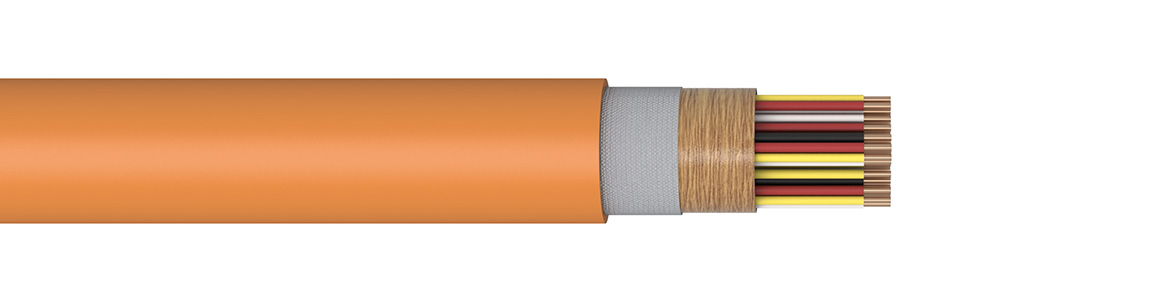

Specification
TP 31.30.13 – KDP – 01/00, ČSN IEC 332-3A, ČSN EN 50268-2, ČSN EN 50267-2-2
Each 2 wires twisted to a pair (screened or unscreened)
Application
» transmission of electric signal of telecommunication, controlling and protecting purposes or control circuits
» designed especially for using in area danger of fire
» for indoor installations, tunnels or collectors, laying at cable ducts, on cable bridges, on cable grids or supports, burial in sand bedding, grasp or free placing in standard
Environmental conditions
Temperature ranges for laying and assembly –5 °C
Operation and store temperatures – 40 °C to +65 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 40 years
| A-HH…P P A-HH-J … P |
|||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| Core diameter 1.0 mm | |||
| 1 | 11.2 | 107 | 2,000 |
| 2 | 13.2 | 145 | 2,000 |
| 3 | 15.0 | 181 | 2,000 |
| 4 | 15.4 | 205 | 2,000 |
| 6 | 15.9 | 249 | 2,000 |
| 7 | 16.6 | 275 | 2,000 |
| 12 | 20.0 | 404 | 2,000 |
| 16 | 22.3 | 504 | 2,000 |
| 24 | 27.4 | 708 | 1,000 |
| 30 | 29.7 | 843 | 1,000 |
| 48 | 34.3 | 1,398 | 1,000 |
| 61 | 38.7 | 1,715 | 500 |
| Core diameter 1.12 mm | |||
| 1 | 11.2 | 110 | 2,000 |
| 2 | 13.2 | 151 | 2,000 |
| 3 | 15.0 | 191 | 2,000 |
| 4 | 15.4 | 217 | 2,000 |
| 6 | 15.9 | 268 | 2,000 |
| 7 | 16.6 | 297 | 2,000 |
| 12 | 20.0 | 443 | 2,000 |
| 16 | 22.3 | 555 | 2,000 |
| 24 | 27.4 | 785 | 1,000 |
| 30 | 29.7 | 939 | 1,000 |
| 48 | 34.3 | 1,552 | 1,000 |
| 61 | 38.7 | 1,910 | 500 |
| A-HH … PIMF A-HH-J … PIMF |
|||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| Core diameter 1.0 mm | |||
| 1 | 11.9 | 113 | 2,000 |
| 2 | 14.1 | 153 | 2,000 |
| 3 | 16.0 | 191 | 2,000 |
| 4 | 16.4 | 214 | 2,000 |
| 6 | 17.5 | 263 | 2,000 |
| 7 | 18.4 | 291 | 2,000 |
| 12 | 22.7 | 429 | 2,000 |
| 16 | 25.5 | 534 | 2,000 |
| 24 | 31.8 | 749 | 1,000 |
| 30 | 33.9 | 886 | 1,000 |
| 48 | 41.6 | 1,479 | 500 |
| 61 | 46.9 | 1,808 | 500 |
| Core diameter 1.12 mm | |||
| 1 | 11.9 | 117 | 2,000 |
| 2 | 14.1 | 160 | 2,000 |
| 3 | 16.0 | 200 | 2,000 |
| 4 | 16.4 | 227 | 2,000 |
| 6 | 17.5 | 283 | 2,000 |
| 7 | 18.4 | 314 | 2,000 |
| 12 | 22.7 | 468 | 2,000 |
| 16 | 25.5 | 585 | 2,000 |
| 24 | 31.8 | 826 | 1,000 |
| 30 | 33.9 | 982 | 1,000 |
| 48 | 41.6 | 1,632 | 1,000 |
| 61 | 46.9 | 2,003 | 500 |
