  • Metalické kabely
  • Signální

A-2Y(L)2YB2Y

...x4x0.9 S LG (...B 0...) (H45)

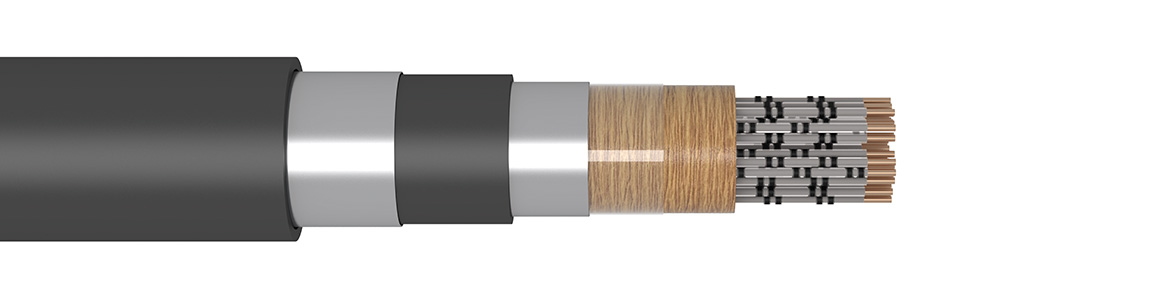

1
2
3
4
5
6
7
8
1

Copper wire

2

Core insulation – solid PE

3

Crepe paper

4

Plastic tape

5

 Laminated aluminium foil

6

PE inner jacket, black

7

Stell armour tape

8

PE outer jacket, black

Cable core – quads stranded in concetric layers.

Specification

Dlk. 1.013.109y, Dlk.1.013.110y

Application

» cables are designed for general use in protective equipment
» cables are suitable for placement as in earth or conduits

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 25 °C to +60 °C
Permitted minimum bending radius min. 15D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.9
Max. loop resistanceΩ/km56.6
Insulation resistance min.GΩ.km10
Mutual capacitancenF/km45
Effective test voltage wire/wire at 50 HzV2500
Effective test voltage wire/shield at 50 HzV2500
Operating voltageVss600
Wire/core diameter H45 0.9/1.8 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m]
1 12.0 160 1,000
3 17.0 290 1,000
5 19.0 410 1,000
7 21.0 510 1,000
10 24.0 660 1,000
14 27.0 830 1,000
