A-HHBH

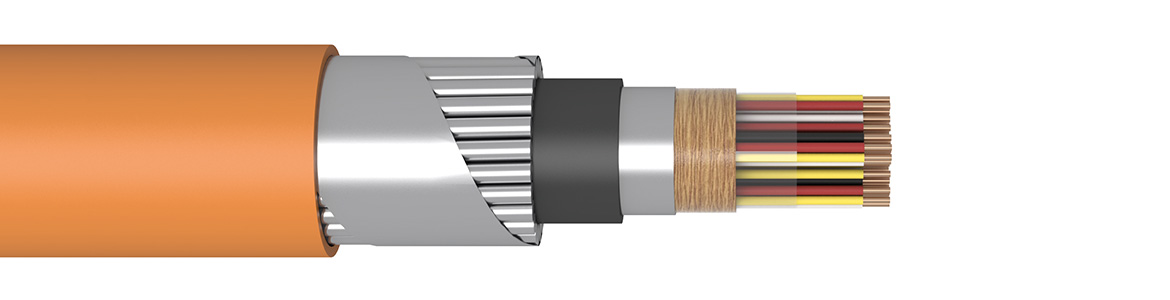

...x2x... P LG (R...VZK) FRNC (...x2x... PIMF LG (R...VZK) FRNC)

1
2
3
4
5
6
7
8
1

Copper wire

2

Core insulation – solid PE

3

 Wrapping plastic tape

4

Crepe paper

5

Laminated aluminium foil

6

PE inner jacket, black

7

Fe/Zn wires

8

FRNC outer jacket, orange

Each 2 wires twisted to a pair (Screened or unscreened).

Specification

TP 31.30.13 – KDP – 01/00, ČSN IEC 332-3A, ČSN EN 50268-2, ČSN EN 50267-2-2

Application

» transmission of electric signal of telecommunication, controlling and protecting purposes of control circuit
» for using in area danger of fire
» for indoor and outdoor installations, tunnels or collectors, direct burial placing with highest tension or supporting without carrying wire
» grasp or free placing in areas with alternating electromagnetic field danger

Environmental conditions

Temperature ranges for laying and assembly –5 °C
Operation and store temperatures – 40 °C to +65 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 40 years


D – outside cable diameter

A-HHBH … P A-HHBH-J … P
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m]
Core diameter 1.0 mm
3 23.9 1,010 1,000
4 24.3 1,040 1,000
6 24.8 1,130 1,000
7 25.5 1,200 1,000
12 28.9 1,520 1,000
16 31.2 1,760 1,000
24 36.8 2,245 1,000
30 28.6 2,480 1,000
48 43.2 3,280 500
61 47.6 3,880 500
Core diameter 1.12 mm
3 23.9 1,020 2,000
4 24.3 1,050 2,000
6 24.8 1,150 2,000
7 25.5 1,220 2,000
12 28.9 1,555 2,000
16 31.2 1,810 2,000
24 36.8 2,320 1,000
30 28.6 2,570 1,000
48 43.2 3,430 1,000
61 47.6 4,060 500
A-HHBH … PIMF A-HHBH-J … PIMF
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m]
Core diameter 1.0 mm
3 24.4 1,120 1,000
4 24.6 1,150 1,000
6 25.7 1,255 1,000
7 26.6 1,330 1,000
12 30.9 1,725 1,000
16 34.1 2,035 1,000
24 40.4 2,610 500
30 42.5 2,910 500
48 50.2 3,940 500
61 55.5 4,610 500
Core diameter 1.12 mm
3 24.4 1,130 1,000
4 24.6 1,160 1,000
6 25.7 1,275 1,000
7 26.6 1,355 1,000
12 30.9 1,760 1,000
16 34.1 2,080 1,000
24 40.4 2,680 500
30 42.5 3,000 500
48 50.2 4,085 500
61 55.5 4,795 500
