  • Metalické kabely
  • Signální

A-2Y2YV

... x1x0.9 (1.4; 1.8) S LG (H95; H115; H145)

1
2
3
4
1

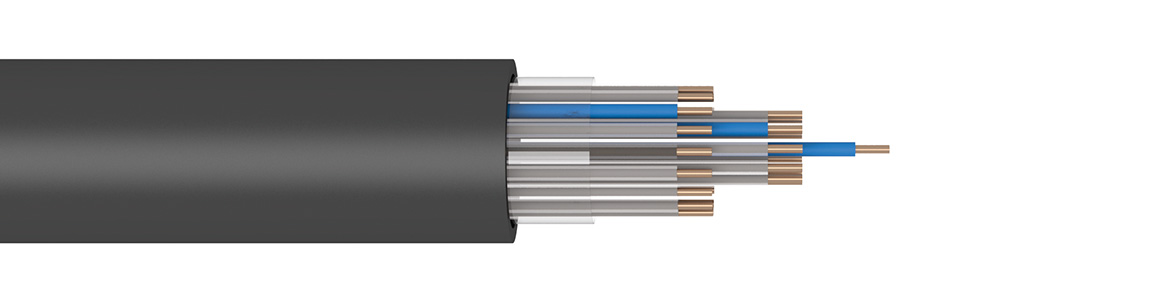

Copper wire

2

Core insulation – solid

3

Plastic tape

4

PE outer jacket, black

Cable is wires stranded in concentric layers

Specification

Dlk. 1.013.107y, Dlk. 1.013.108y, Dlk. 1.013.110y

Application

» for general use in protective devices
» for use as underground and counduit cables

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.91.41.8
Max. loop resistanceΩ/km28.911.97.2
Insulation resistance min.GΩ.km101010
Effective test voltage wire/wire at 50 HzV250025002500
Effective test voltage wire/shield at 50 HzV250025002500
Wire/core diameter H95 0.9/1.55 mm Wire/core diameter H115 1.4/2.2 mm Wire/core diameter H145 1.8/2.7 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
H115 H145
2 8.0 50 1,000
4 9.0 70 1,000 11.0 120 1,000 12.0 170 1,000
7 10.0 100 1,000 12.0 170 1,000 14.0 260 1,000
10 11.0 130 1,000 14.0 240 1,000 16.0 370 1,000
14 12.0 160 1,000 15.0 320 1,000 18.0 490 1,000
20 13.0 210 1,000 17.0 430 1,000 21.0 670 1,000
24 14.0 250 1,000 18.0 500 1,000 22.0 790 1,000
30 15.0 300 1,000 20.0 610 1,000 24.0 960 1,000
40 16.0 380 1,000 21.0 790 1,000 27.0 1,260 1,000
50 18.0 460 1,000 24.0 970 1,000 29.0 1,540 1,000
60 19.0 530 1,000 25.0 1,150 1,000 31.0 1,830 1,000
80 21.0 680 1,000 28.0 1,490 1,000 35.0 2,420 1,000
100 23.0 850 1,000 32.0 1,870 1,000 40.0 3,000 1,000
120 25.0 990 1,000 34.0 2,220 1,000 42.0 3,570 500
140 26.0 1,150 1,000 37.0 2,560 1,000 45.0 4,130 500
160 28.0 1,300 1,000 39.0 2,910 1,000 49.0 4,730 500
180 29.0 1,460 1,000 41.0 3,260 1,000 52.0 5,310 500
200 30.0 1,600 1,000 42.0 3,590 500 53.0 5,870 500
Wire/core diameter H95 1.4/2.7 mm Wire/core diameter H95 1.8/3.4 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
H95
10 16.0 280 1,000 19.0 410 1,000
14 18.0 370 1,000 21.0 560 1,000
20 20.0 500 1,000 24.0 760 1,000
30 24.0 700 1,000 28.0 1,090 1,000
50 29.0 1,120 1,000 36.0 1,770 1,000
