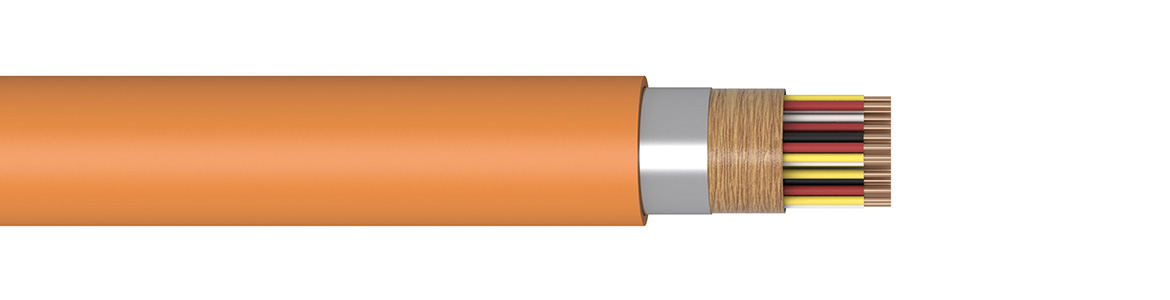

A-H(L)H

...x2x... P LG FRNC (...x2x... PIMF LG FRNC)

1
2
3
4
5
1

Copper wire

2

Core insulation – solid PE

3

 Crepe paper

4

Laminated aluminium foil

5

FRNC outer jacket, orange

Each 2 wires twisted to a pair (screened or unscreened).

Specification

TP 31.30.13 – KDP – 01/00, ČSN IEC 332-3A, ČSN EN 50268-2, ČSN EN 50267-2-2

Application

» transmission of electric signal of telecommunication, controlling and protecting purposes or control circuits
» designed especially for using in area danger of fire
» for indoor installations, tunnels or collectors, laying at cable ducts, on cable bridges, on cable grids or supports,

Environmental conditions

Temperature ranges for laying and assembly –5 °C
Operation and store temperatures – 40 °C to +65 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

A-H(L)H … P A-H(L)H-J … P
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m]
Core diameter 1.0 mm
1 11.6 124 2,000
2 13.6 165 2,000
3 15.4 205 2,000
4 15.8 230 2,000
6 16.3 273 2,000
7 17.0 302 2,000
12 20.4 437 2,000
16 22.7 541 2,000
24 27.8 754 1,000
30 30.1 889 1,000
48 34.7 1,454 1,000
61 39.1 1,778 500
Core diameter 1.12 mm
1 11.6 127 2,000
2 13.6 171 2,000
3 15.4 215 2,000
4 15.8 241 2,000
6 16.3 293 2,000
7 17.0 324 2,000
12 20.4 475 2,000
16 22.7 592 2,000
24 27.8 831 1,000
30 30.1 985 1,000
48 34.7 1,607 1,000
61 39.1 1,974 500
A-H(L)H … PIMF A-H(L)H-J … PIMF
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m]
Core diameter 1.0 mm
1 12.3 131 2,000
2 14.5 173 2,000
3 16.4 214 2,000
4 16.8 239 2,000
6 17.9 289 2,000
7 18.8 318 2,000
12 23.1 465 2,000
16 25.9 574 2,000
24 32.2 802 1,000
30 34.3 944 1,000
48 42.0 1,545 500
61 47.3 1,883 500
Core diameter 1.12 mm
1 12.3 134 2,000
2 14.5 179 2,000
3 16.4 224 2,000
4 16.8 252 2,000
6 17.9 309 2,000
7 18.8 341 2,000
12 23.1 503 2,000
16 25.9 625 2,000
24 32.2 879 1,000
30 34.3 1,040 1,000
48 42.0 1,698 1,000
61 47.3 2,078 500
