  • Metalické kabely
  • Signální

A-2Y2YB2Y

... x1x0.9 (1.4; 1.8) S LG...B 0 (H95; H115 resp. H145)

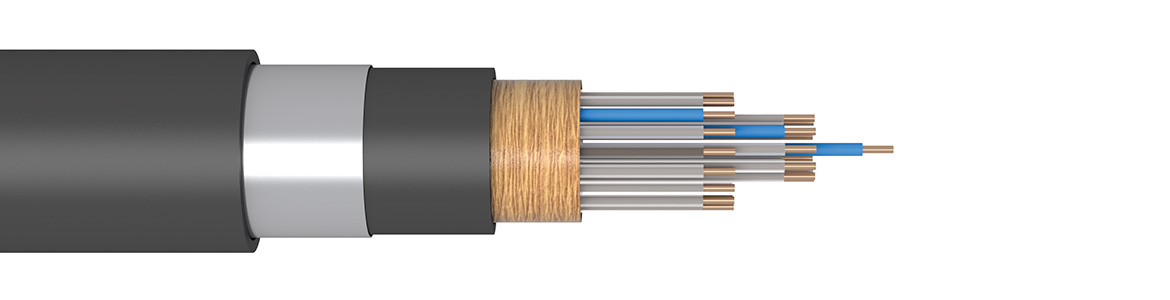

1
2
3
4
5
6
1

Copper wire

2

Core insulation – foam skin

3

Crepe paper

4

PE inner jacket, black

5

Stell armour tape

6

PE outer jacket, black

Cable core – conductors stranded in concetric layers.

Specification

 Dlk. 1.013.107y, Dlk. 1.013.108y, Dlk. 1.013.110y

Application

» for general use in protective devices
» for use as underground and counduit cables

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.91.41.8
Max. loop resistanceΩ/km28.911.97.2
Insulation resistance min.GΩ.km101010
Effective test voltage wire/wire at 50 Hz
V250025002500
Effective test voltage wire/shield at 50 HzV250025002500
Wire/core diameter H95 0.9/1.55 mm Wire/core diameter H115 1.4/2.2 mm Wire/core diameter H145 1.8/2.7 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
H115 H145
2 10.0 110 1,000 13.0 180 1,000
4 11.0 130 1,000 14.0 250 1,000 14.0 250 1,000
7 12.0 150 1,000 16.0 330 1,000 16.0 360 1,000
10 13.0 190 1,000 17.0 410 1,000 18.0 470 1,000
14 14.0 240 1,000 19.0 540 1,000 20.0 630 1,000
20 15.0 300 1,000 21.0 650 1,000 23.8 840 1,000
24 16.0 350 1,000 22.0 760 1,000 24.0 960 1,000
30 17.0 400 1,000 24.0 950 1,000 26.0 1,150 1,000
40 18.0 480 1,000 26.0 1,160 1,000 29.0 1,470 1,000
50 20.0 600 1,000 27.0 1,340 1,000
60 21.0 680 1,000
80 23.0 850 1,000
100 26.0 1,030 1,000
120 27.0 1,190 1,000
140 29.0 1,360 1,000
Wire/core diameter H115 1.4/2.7 mm Wire/core diameter H145 1.8/3.4 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
10 18.0 390 1,000 21.0 570 1,000
14 20.0 500 1,000 23.0 720 1,000
20 20.0 660 1,000

Note: Cable versions according to Dlk 1.013.102 on reguest
