  • Optické kabely
  • Datacenter
  • Breakout

Breakout Standard

Indoor

Halogen Free

FTTx

Datacenter

1
2
3
4
5
6
7
8

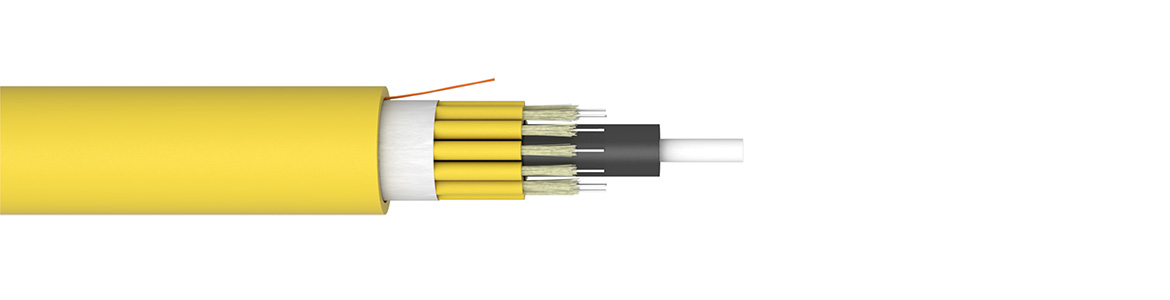

1

Central FRP strength member.

2

PE coating for central FRP strength member when necessary.

3

FR-LSZH buffered optical fiber.

4

Waterblocking aramid yarn.

5

Simplex cable.

6

Water-swellable tape.

7

Rip-Cord.

8

FR-LSZH outer jacket.

Design
Code
Max. fiber
count
Simplex
diameter
[mm]
Cable outer
diameter
[mm]
Net weight
[kg/km]
Max. load
(installation)
[N]
Crush
Resistance
[N/10 cm]
41×1361.815.0226.03,5002,000
42×1
482.019.0339.05,0001,500
44×1242.416.8277.04,0001,500
49×1242.919.7334.03,2001,500

Temperature range - 41x1 | 49x1

Installation: -5 to +40 °C | Operation: -5 to +50 °C | Storage: -25 to +60 °C

Temperature range - 42x1 | 44x1

Installation: -5 to +50 °C | Operation: -20 to +60 °C | Storage: -20 to +60 °C
