Indoor
Outdoor
Halogen Free
FTTx
High Tensile
Datacenter

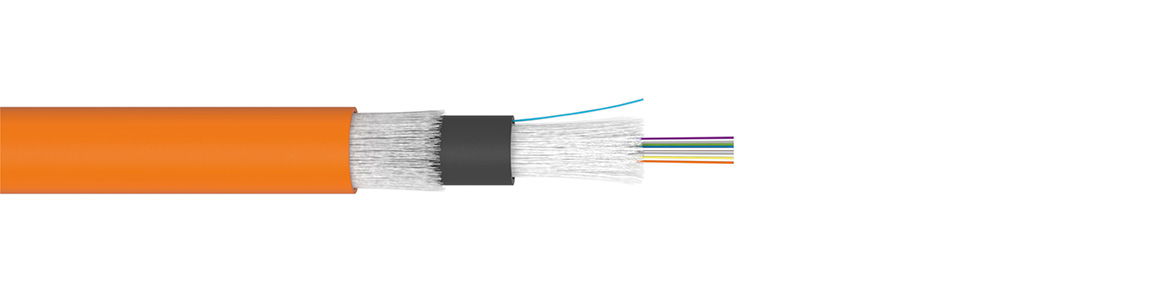

FR-LSZH buffered optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH inner jacket.
Waterblocking E-glass yarn.
FR-LSZH outer jacket, UV stable.
| Design Code | Fiber count | Cable outer diameter [mm] | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|
| 5E×8 | 2 | 8.4 | 84.0 | 2,500 | 2,000 |
| 5E×8 | 4 | 8.9 | 95.0 | 2,800 | 2,000 |
| 5E×8 | 6 | 9.2 | 102.0 | 3,000 | 2,000 |
| 5E×8 | 8 | 10.1 | 115.0 | 3,300 | 2,000 |
| 5E×8 | 12 | 11.1 | 135.0 | 3,600 | 2,000 |
| 5E×8 | 16 | 12.3 | 164.0 | 3,800 | 2,000 |
| 5E×8 | 24 | 14.1 | 201.0 | 4,100 | 2,000 |
Installation: -5 to +50 °C | Operation: -20 to +60 °C | Storage: -20 to +60 °C
Distribution SWA
