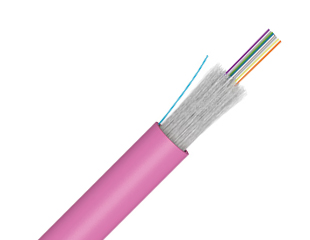

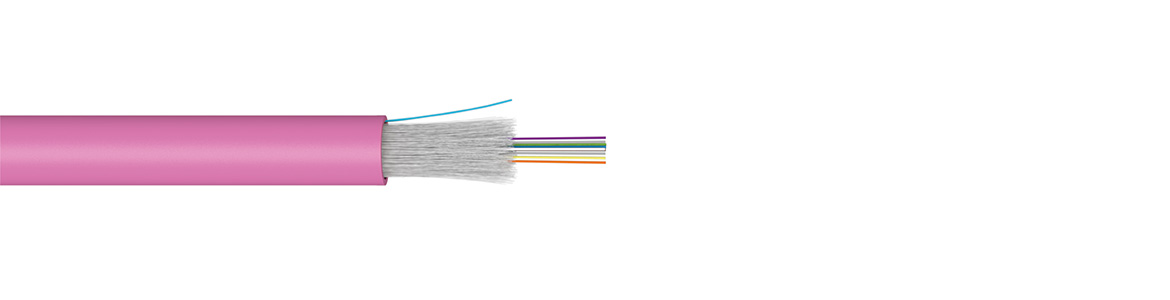

Acrylate
Indoor
Outdoor
Halogen Free
FTTx
Datacenter
Temperature range
Installation: -30 to +60 °C | Operation: -40 to +70 °C | Storage: -40 to +70 °C
| Design Code | Fiber count | Cable outer diameter [mm] | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|
| 5VA1 | 2 | 4.4 | 20.0 | 550 | 2,000 |
| 5VA1 | 4 | 5.1 | 25.0 | 750 | 2,000 |
| 5VA1 | 6 | 5.3 | 28.0 | 900 | 2,000 |
| 5VA1 | 8 | 5.9 | 33.0 | 1,000 | 2,000 |
| 5VA1 | 10 | 6.1 | 35.0 | 1,000 | 2,000 |
| 5VA1 | 12 | 6.4 | 38.0 | 1,100 | 2,000 |
| 5VA1 | 16 | 7.5 | 52.0 | 1,300 | 2,000 |
| 5VA1 | 24 | 8.5 | 64.0 | 1,600 | 2,000 |
