  • Optické kabely
  • Datacenter
  • Distribution

Distribution SWA

Armoured

Indoor

Outdoor

Halogen Free

Antirodent

FTTx

High Tensile

Direct Burial

1
2
3
4
5
6

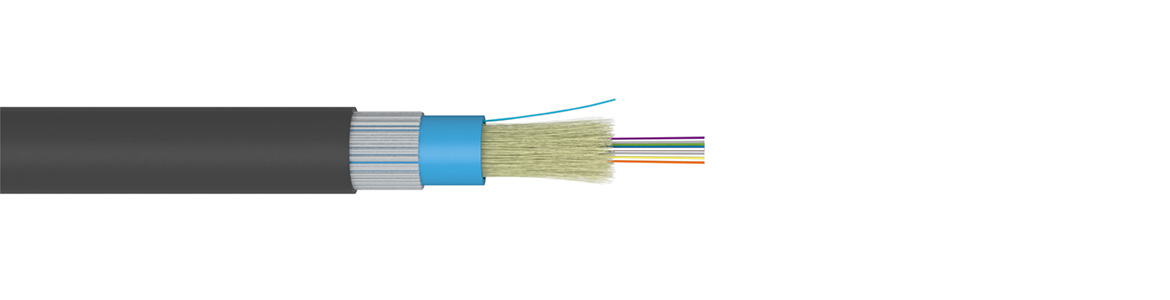

1

FR-LSZH buffered optical cable.

2

Waterblocking aramid yarn.

3

Rip-Cord.

4

FR-LSZH inner jacket.

5

Steel Wire Armour (SWA).

6

FR-LSZH or PE outer jacket, UV stable.

Design
Code
Fiber countCable outer diameter [mm]Net weight
[kg/km]
Max. load
(installation)
[N]
Crush
Resistance
[N/10 cm]
5A×4410.2169.04,3502,000
5A×4811.2199.05,1002,000
5A×41211.7217.05,5502,000
5A×42414.8312.07,8002,000
5A×5410.2145.04,3502,000
5A×5811.2173.05,1002,000
5A×51211.7190.05,5502,000
5A×52414.8276.07,8002,000

Temperature range

Installation: -5 to +50 °C | Operation: -20 to +60 °C | Storage: -20 to +60 °C
