  • Metalické kabely
  • Telekomunikační

A-2YF(L)2Y

...x2x0.6 (0.8) ST III BD (H52; H55)

1
2
3
4
5
6
1

Copper wire

2

Core insulation – foam skin PE

3

Filling material

4

Crepe paper

5

Laminated aluminium foil

6

PE outer jacket, black

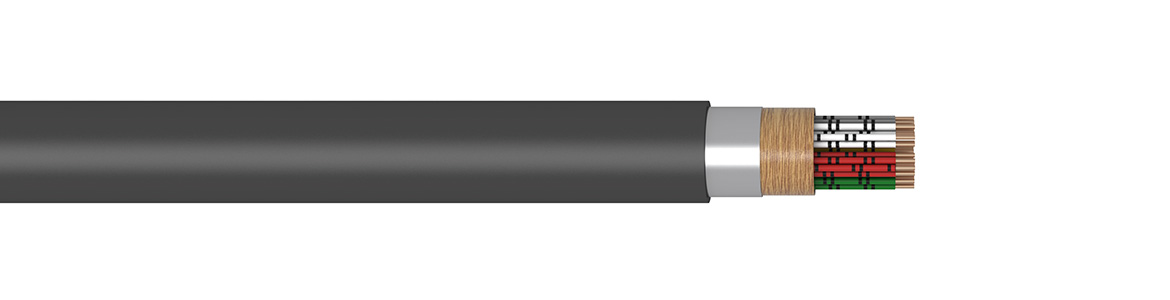

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core. Cable core is filled.

Specification

VDE 0816

Application

» connection cables in Local Area Networks and in private branch exchange for telephony and signal transfer
» suitable for placement as underground and conduit cables

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Rings identify the individual conductors

Pair 1 a
b
Pair 2 a
b

Electrical parameters (20 °C)

Conductor diametermm0.60.8
Max. loop resistanceΩ/km13073.2
Insulation resistance min.GΩ.km1.51.5
Mutual capacitancenF/km5255
Effective Test voltage wire/wire at 50 HzV500500
Test voltage wire/shield at 50 HzV2,0002,000
Operating voltage max.Vss225225
Wire/core diameter H52 0.6/1.3 mm Wire/core diameter H55 0.8/1.6 mm
Number of units External diameter [mm] Net weight

[kg/km]

Standard production length

[m]

External diameter [mm] Net weight

[kg/km]

Standard production length

[m]

2 9.0 80 2,000 10.0 100 2,000
4 13.0 150 2,000 14.5 195 2,000
6 12.0 140 2,000 13.5 200 2,000
10 13.5 190 2,000 15.5 280 2,000
20 16.5 315 2,000 20.0 485 2,000
30 19.5 440 2,000 23.0 675 2,000
40 21.5 555 2,000 26.5 885 2,000
50 23.5 670 2,000 28.5 1,070 2,000
70 27.0 910 2,000 33.0 1,445 2,000
100 31.5 1,245 2,000 38.5 2,015 2,000
150 38.5 1,835 2,000 47.5 3,010 1,000
200 43.0 2,375 1,000 54.0 3,920 500
250 48.5 2,975 1,000 60.0 4,890 500
300 52.0 3,505 1,000 64.5 5,780 500
400 58.4 4,080 500
500 64.0 5,010 500
