TCEKFLH

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
1

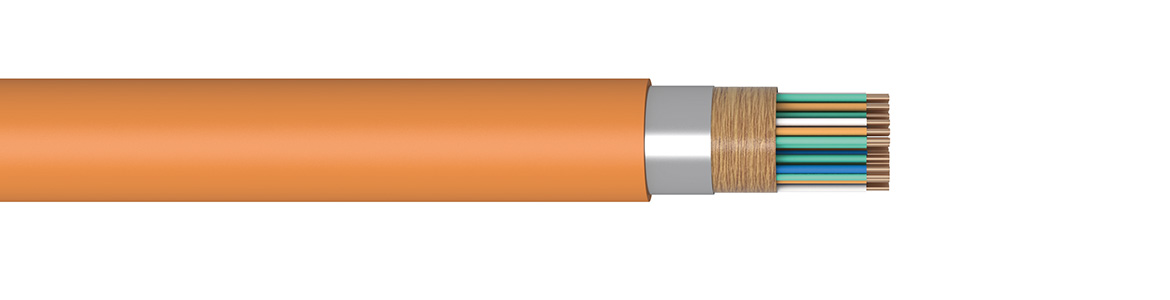

Copper wire

2

Core insulation – solid PE

3

Crepe paper

4

 Laminated aluminium foil

5

FRNC outer jacket, orange

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core.

Specification

TP 31.30.13 – KD – 001/94
TP 31.30.13 – KD – 002/94

Application

» basic phone services in analogue and digital transmission systems
» to be placed in cable ducts, under ground laying and areas without higher danger of mechanical  cable damage
» designed especially for using in areas danger of fire

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.40.6 0.8
Max. loop resistanceΩ/km300133.273.6
Insulation resistance min.GΩ.km101010
Mutual capacitancenF/km494949
Capacity unbalance k1 at 800 HzpF/500 m800800500
Effective test voltage wire/wire at 50 HzV100010001000
Effective test voltage wire/shield at 50 HzV2,0002,0002,000
Operating voltage max.Vss250250250
Wire/core diameter 0.4/0.9 mm Wire/core diameter 0.6/1.3 mm Wire/core diameter 0.8/1.7 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
3 12.5 140 2,000/E 14.5 170 2,000/E 16.5 230 2,000/D
5 13.5 160 2,000/E 16.0 210 2,000/D 18.5 300 2,000/D
10 16.5 230 2,000/D 20.5 340 2,000/B 24.0 470 2,000/B
15 17.5 260 2,000/D 21.5 400 2,000/B 25.0 580 2,000/A
20 18.5 305 2,000/D 23.5 480 2,000/B 28.0 740 1,000/C
25 19.5 340 2,000/C 25.0 550 2,000/A 31.0 850 1,000/A
35 22.0 420 2,000/B 28.5 710 1,000/C 35.0 1,100 1,000/A
50 24.5 530 2,000/B 32.5 920 1,000/B 45.0 1,660 750/A
75 28.0 695 1,000/C 41.5 1,450 750/A 52.0 2,270 500/A
100 32.0 905 1,000/B 45.5 1,820 750/A 61.5 2,930 333/A
150 40.0 1,380 750/A 53.0 2,500 500/A
200 45.0 1,720 750/A 63.5 3,250 333/A
250 49.0 2,035 500/A 66.0 3,820 333/A
300 53.0 2,335 500/A
400 60.0 2,960 333/A
500 65.5 3,535 333/A
600 70.0 4,070 333/A
Drum diameter (mm)
A 2,250 B 2,000 C 1,750 D 1,500 E 1,250 F 1,000
