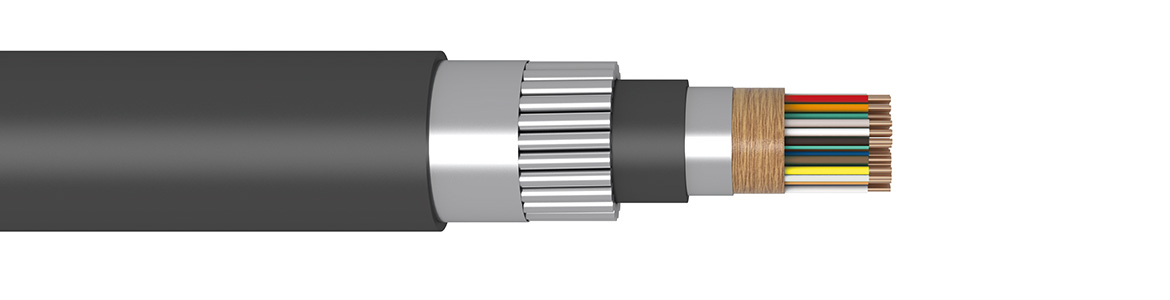

TCEPKPFLEZE, TCEPKPFLEZY

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
6
7
8
1

Copper wire

2

Core insulation – skin foam PE

3

Filling material

4

Crepe paper

5

 Fe/Zn tape

6

PE inner jacker, black

7

Armor aluminium wires

8

PE or PVC outer jacket, black

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core. Cable core is filled.

Specification

TP 31.30.13 – KD – 001/94
TP 31.30.13 – KD – 002/94

Application

» the cables are used for basic phone services in analogue and digital transmission systems
» the cables are designed to be placed under ground and to areas with higher demands for tensile strength, suspension without supporting rope and laying in areas jeopardized by effects of alternate electromagnetic fields
» the cables with PVC shield are designed to be placed in areas with fire spread danger

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.40.6 0.8
Max. loop resistanceΩ/km300133.273.6
Insulation resistance min.GΩ.kmmin. 10min. 10min. 10
Mutual capacitancenF/kmmax. 49max. 49max. 49
Capacity unbalance k1 at 800 HzpF/500 m800800500
Effective test voltage wire/wire at 50 HzV350350350
Effective test voltage wire/shield at 50 HzV700700700
Operating voltage max.Vss250250250
Design code TCEPKPFLEZE Design code TCEPKPFLEZE Design code TCEPKPFLEZE
Wire/core diameter 0.4/0.8 mm Wire/core diameter 0.6/1.2 mm Wire/core diameter 0.8/1.6 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
3 25.0 440 2,000/D 27.0 540 2,000/B 27.5 600 2,000/B
5 25.5 480 2,000/D 28.0 610 2,000/B 31.0 790 2,000/A
10 27.5 565 2,000/B 30.5 760 2,000/A 33.5 1,025 1,000/D
15 29.5 680 2,000/A 34.0 955 1,000/A 37.0 1,290 1,000/B
20 30.5 755 2,000/A 36.0 1,110 1,000/D 41.0 1,560 1,000/B
25 32.5 825 2,000/A 37.0 1,225 1,000/B 44.0 1,840 1,000/A
35 34.0 965 1,000/A 41.5 1,545 1,000/B 48.5 2,285 500/B
50 37.0 1,195 1,000/B 45.5 1,950 500/A 53.5 2,895 500/B
75 40.5 1,445 1,000/B 50.0 2,500 500/B 60.5 3,950 500/A
100 43.5 1,780 1,000/A 54.5 3,115 500/B 68.0 4,990 250/A
150 48.5 2,310 500/B 61.0 4,160 500/A
200 51.5 2,800 500/B 69.0 5,320 250/A
250 55.0 3,300 500/B
300 60.0 3,950 500/A
400 68.5 5,125 250/A
500 73.0 6,005 250/A
Design code TCEPKPFLEZY Design code TCEPKPFLEZY Design code TCEPKPFLEZY
Wire/core diameter 0.4/0.8 mm Wire/core diameter 0.6/1.2 mm Wire/core diameter 0.8/1.6 mm
3 26.0 530 2,000/D 28.0 640 2,000/B 28.5 700 2,000/B
5 26.5 570 2,000/B 29.0 710 2,000/B 32.0 910 2,000/A
10 28.5 665 2,000/B 31.5 875 2,000/A 34.5 1,150 1,000/D
15 30.5 790 2,000/A 35.0 1,080 1,000/D 38.0 1,435 1,000/B
20 31.5 870 2,000/A 37.0 1,245 1,000/B 42.0 1,720 1,000/A
25 33.5 940 2,000/A 38.0 1,365 1,000/B 45.0 2,015 1,000/A
35 35.0 1,090 1,000/D 42.5 1,700 1,000/A 49.5 2,480 500/B
50 38.0 1,335 1,000/B 46.5 2,125 500/A 54.5 3,105 500/B
75 41.5 1,600 1,000/B 51.0 2,700 500/B 61.5 4,195 500/A
100 44.5 1,945 1,000/A 55.5 3,335 500/B 69.0 5,265 250/A
150 49.5 2,500 500/B 62.0 4,405 250/A
200 52.5 3,000 500/B 70.0 5,605 250/A
250 56.0 3,520 500/A
300 61.0 4,195 500/A
400 69.5 5,405 250/A
500 74.0 6,305 250/A
Drum diameter (mm)
A 2,250 B 2,000 C 1,750 D 1,500 E 1,250 F 1,000
