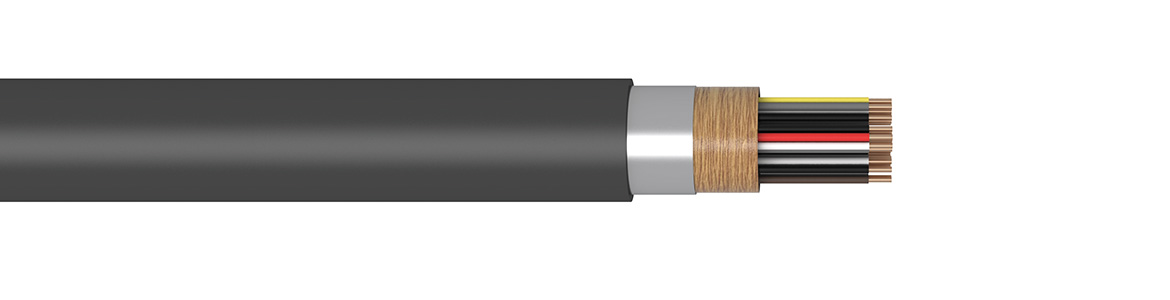

CW 1171/CW 1179

…x2x0.4 (0.5; 0.63; 0.9)

1
2
3
4
5
1

Copper wire

2

Core insulation – foam skin PE

3

Crepe paper

4

Laminated aluminium foil

5

PE outer jacket, black

Transmission element – pair.

Specification

BT CW1171 and CW 1179

Application

» conection cables in Local Area Networks and in private branch exchanges for telephony and signal transfers
» suitable for placement as under ground and conduit cables

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.40.50.630.9
Max. loop resistanceΩ/km143915828
Insulation resistance min.GΩ.km6.56.56.56.5
Mutual capacitancenF/km53535659
Design code CW1171/1179
Wire/core diameter 0.4/0.75 mm Wire/core diameter 0.5/0.9 mm Wire/core diameter 0.63/1.15 mm Wire/core diameter 0.9/1.50 mm
Number of units External diameter [mm] Standard production length [m] External diameter [mm] Standard production length [m] External diameter [mm] Standard production length [m] External diameter [mm] Standard production length [m]
25 14.0 1,000 16.0 1,000 19.0 1,000 22.5 1,000
50 16.0 1,000 19.0 1,000 22.0 1,000 27.5 1,000
100 20.5 1,000 23.5 1,000 28.0 1,000 37.0 1,000
200 26.0 1,000 30.5 1,000 37.5 1,000 49.2 1,000
300 30.5 1,000 37.0 1,000 46.0 1,000 59.7 500
400 35.0 1,000 42.5 1,000 52.5 1,000 68.2 500
500 37.5 1,000 46.0 1,000 56.5 500 75.6 400
600 40.5 1,000 49.5 1,000 61.0 500
800 46.5 1,000 56.5 500 70.5 500
1,000 51.5 1,000 62.5 500 74.9 400
1,200 56.0 500 69.0 500
1,600 65.5 500 75.0 400
2,000 70.0 500
2,400 75.0 400
