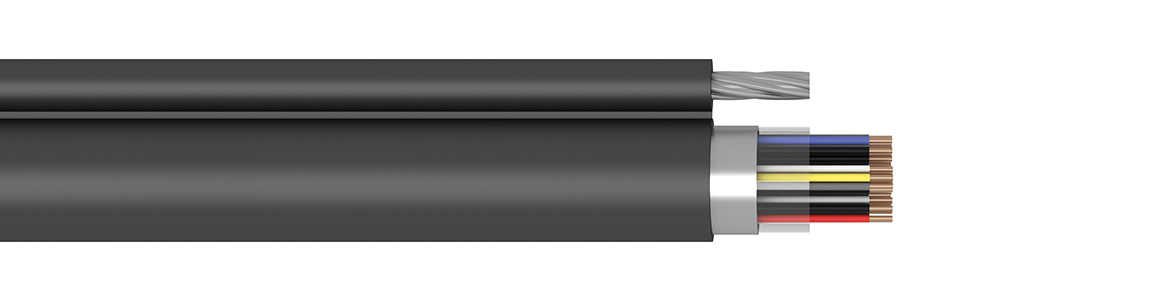

LRQHQKAHQ (Ql – aerial)

...x4x0.6 (0.8)

1
2
3
4
5
6
1

Copper wire

2

Core insulation – solid PE

3

Wraping plastic tape

4

Laminated aluminium foil

5

PVC outer jacket, black

6

Steel wire messenger

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core.

Specification

MMD59V5

Application

» for basic phone services in analogue and digital transmission systems
» for aerial use

Environmental conditions

Temperature ranges for laying and assembly 0 °C  to +40 °C
Operation and store temperatures – 30 °C to +50 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.60.8
Max. loop resistanceΩ/km 130.073.2
Insulation resistance min.GΩ.kmmin. 10min. 10
Mutual capacitancenF/km43 ± 343 ± 3
Capacity unbalance k1 at 800 HzpF/500 m800800
Effective test voltage wire/wire at 50 HzV600600
Effective test voltage wire/shield at 50 Hz
V2,0002,000
Operating voltage max.Vss250250
Wire/core diameter 0.6/1.0 mm Wire/core diameter 0.8/1.35 mm
Number of units External diameter [mm] External diameter steel rope (mm) Net weight [kg/km] Standard production length [m] External diameter [mm] External diameter steel rope (mm) Net weight [kg/km] Standard production length [m]
3 9.9 2.55 117 2,000 11.8 2.55 156 2,000
5 11.4 3 161 2,000 13.8 3 209 2,000
10 13.5 3.6 256 2,000 17 3.6 340 1,000
15 15.8 3.6 329 1,000
25 18.5 3.6 464 1,000
50 24.9 4.2 834 1,000
