  • Metalické kabely
  • Telekomunikační

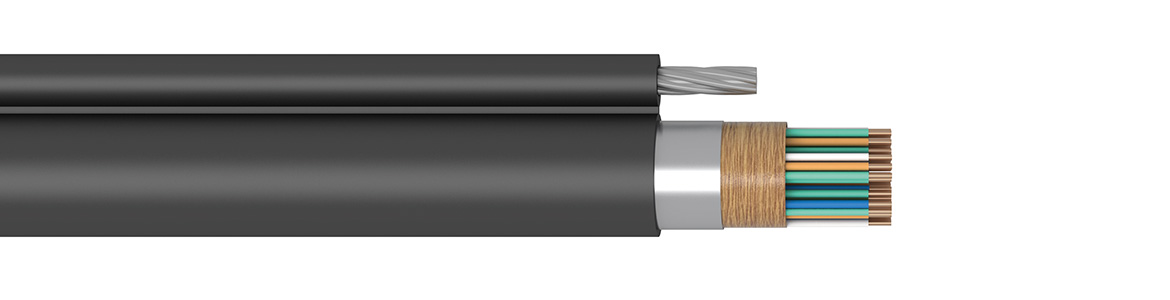

TCEKFLES

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
6
1

Copper wire

2

Core insulation – solid PE

3

Crepe paper

4

Laminated aluminum foil

5

PE outer jacket, black

6

Steel wire messenger

Transmission element – star quad.

Specification

TP 31.30.13 – KD – 001/94
TP 31.30.13 – KD – 002/94

Application

» basic phone services in analogue and digital transmission systems
» designed to be suspended without special supporting rope

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.4 0.6 0.8
Max. loop resistanceΩ/km300133.273.6
Insulation resistance min.GΩ.km101010
Mutual capacitancenF/km494949
Capacity unbalance k1 at 800 HzpF/500 m800800500
Effective test voltage wire/wire at 50 HzV350350350
Effective test voltage wire/wire at 50 HzV700700700
Operating voltageVss250250250
Wire/core diameter 0.4/0.9 mm Wire/core diameter 0.6/1.3 mm Wire/core diameter 0.8/1.7 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
1 12.0 280 2,000/D 14.0 320 2,000/D 16.0 370 2,000/A
3 13.0 220 2,000/D 15.0 280 2,000/B 18.0 360 2,000/A
5 16.0 360 2,000/A 20.0 480 2,000/A 23.0 620 1,000/B
10 17.0 405 2,000/A 21.0 565 1,000/B 24.5 770 1,000/B
15 18.0 450 1,000/D 23.0 660 1,000/B 28.0 945 1,000/A
20 19.0 495 1,000/D 24.5 750 1,000/B 31.0 1,105 500/B
25 21.5 585 1,000/B 28.5 950 1,000/A 36.5 1,435 500/B
35 24.0 710 1,000/B 33.5 1,225 500/B
50 28.0 935 1,000/A 40.0 1,690 500/B
75 32.0 1,150 500/B
100
Drum diameter (mm)
A 2,250 B 2,000 C 1,750 D 1,500 E 1,250 F 1,000

Nominal tensile strength of supporting element for cables up to 3 units is 7 000 N, for other cables 16 000 N
