TCEKFLHZH

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
6
7
8
1

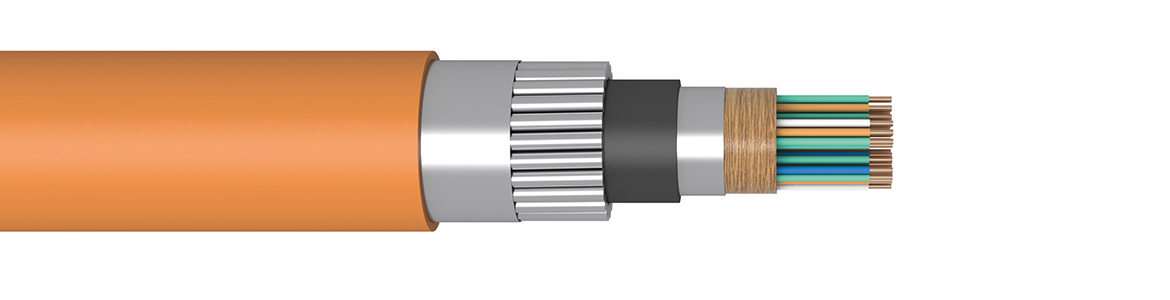

Copper wire

2

Core insulation – solid PE

3

Crepe paper

4

Laminated aluminium foil

5

PE inner jacket, black

6

Armor aluminium wires

7

Fe/Zn tape

8

FRNC outer jacket, orange

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core.

Specification

TP 31.30.13 – KD – 001/94
TP 31.30.13 – KD – 002/94

Application

» for basic phone services in analogue and digital transmission systems
» designed to be placed under ground and to areas with higher demands for tensile strength
» suspension without supporting rope and laying in areas jeopardised by effects of alternate electromagnetic fields
» designed especially for using in areas danger of fire

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.40.60.8
Max. loop resistanceΩ/km300.0133.273.6
Insulation resistance min.GΩ.km101010
Mutual capacitancenF/km494949
Capacity unbalance k1 at 800 HzpF/500 m800800500
Effective test voltage wire/wire at 50 HzV100010001000
Effective test voltage wire/shield at 50 HzV2,0002,0002,000
Operating voltage max.Vss250250250
Wire/core diameter 0.4/0.9 mm Wire/core diameter 0.6/1.3 mm Wire/core diameter 0.8/1.7 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
3 21.9 590 2,000/B 23.9 700 2,000/B 25.7 810 1,000/D
5 22.7 640 2,000/B 24.9 770 1,000/D 27.7 940 1,000/C
10 25.8 810 2,000/A 29.8 1,050 1,000/B 33.0 1,270 1,000/B
15 26.4 840 2,000/A 30.7 1,150 1,000/B 34.2 1,410 1,000/B
20 27.7 960 1,000/C 32.6 1,260 1,000/B 37.2 1,670 1,000/A
25 28.8 1,010 1,000/B 33.9 1,390 1,000/B 39.9 1,870 1,000/A
35 31.2 1,160 1,000/B 37.4 1,640 1,000/A 43.9 2,230 750/A
50 33.6 1,340 1,000/B 41.7 2,000 750/A 53.4 2,850 500/A
75 37.1 1,630 1,000/A 49.9 2,540 500/A 60.8 3,640 333/A
100 40.9 1,900 750/A 53.9 2,950 500/A 70.0 4,450 333/A
150 48.6 2,400 500/A 61.4 3,850 333/A
200 53.4 2,850 500/A
250 57.7 3,270 333/A
300 61.4 3,700 333/A
400 68.4 4,500 333/A
Drum diameter (mm)
A 2,250 B 2,000 C 1,750 D 1,500 E 1,250 F 1,000

Armor is made from Al wires of nominal diameter 3.15 mm. Nominal thickness of FRNC sheath above armor is 2.0 mm.
