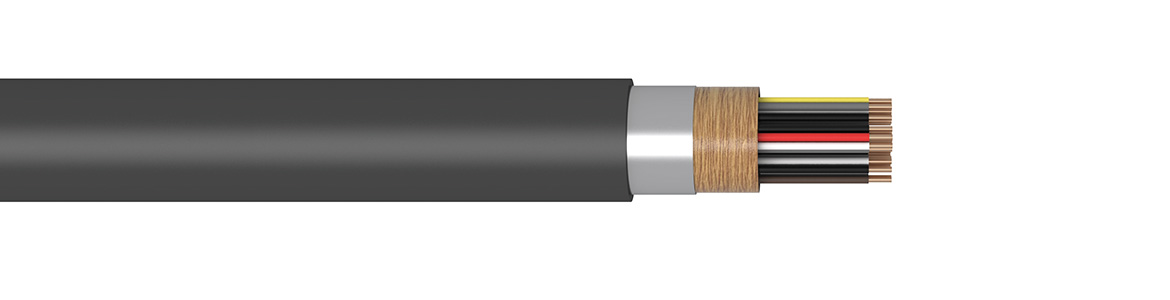

CW 1224/CW 1179

…x2x0.4 (0.5; 0.63; 0.9)

1
2
3
4
5
1

Copper wire

2

Core insulation – foam skin

3

Crepe paper

4

 Laminated aluminium foil

5

PE outer jacket, black

Transmission element – pair

Specification

BT CW1224 and CW 1179

Application

» conection cables in Local Area Networks and in private branch exchanges for telephony and signal transfers
» suitable for placement as under ground and conduit cables

Environmental conditions

Temperature ranges for laying and assembly  10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.4 0.50.630.9
Max. loop resistanceΩ/km143915828
Insulation resistance min.GΩ.km6.56.56.56.5
Mutual capacitancenF/km53535659
Design code cw1224/1179
Wire/core diameter 0.4/0.70 mm Wire/core diameter 0.5/0.80 mm Wire/core diameter 0.63/0.98 mm Wire/core diameter 0.90/1.35 mm
Number of units External diameter [mm] Standard production length [m] External diameter [mm] Standard production length [m] External diameter [mm] Standard production length [m] External diameter [mm] Standard production length [m]
50 15.5 1,000 17.0 1,000 19.5 1,000 24.5 1,000
100 19.0 1,000 22.0 1,000 25.0 1,000 32.5 1,000
200 24.5 1,000 28.5 1,000 33.5 1,000 45.0 1,000
300 28.5 1,000 33.5 1,000 39.5 1,000 56.0 500
400 32.5 1,000 37.5 1,000 44.5 1,000 62.0 500
500 35.5 1,000 41.5 1,000 49.5 1,000
600 38.5 1,000 44.5 1,000 53.5 500
800 44.0 1,000 51.5 1,000 61.0 500
1,000 48.5 1,000 56.0 500 67.5 500
1,200 52.5 1,000 61.5 500 73.5 500
1,600 60.0 500 69.5 500
2,000 66.5 500 75.0 400
2,400 72.5 500
