  • Metalické kabely
  • Telekomunikační

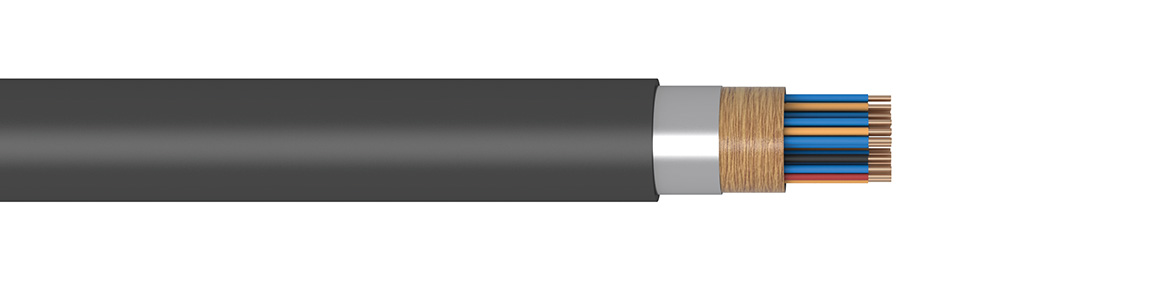

HRQhQzKAhQ (Qv – jelly filled)

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
6
1

Copper wire

2

Core insulation – foam skin PE

3

Filling material

4

Crepe paper

5

Laminated aluminium foil

6

PE outer jacket, black

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core. Cable core is filled.

Specification

MMD-59V5

Application

» for basic phone services in analogue and digital transmission systems
» to be placed in cable ducts, under ground laying and areas without higher danger of mechanical cable damage

Environmental conditions

Temperature ranges for laying and assembly –0 °C  to +40 °C
Operation and store temperatures – 30 °C to +50 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.4 0.6 0.8
Max. loop resistanceΩ/km300.013373.2
Insulation resistance min.GΩ.kmmin. 10min. 10min. 10
Mutual capacitancenF/km 43 ± 343 ± 343 ± 3
Capacity unbalance k1 at 800HzpF/500 m800800800
Effective test voltage wire/wire at 50 HzV600600600
Effective test voltage wire/shield at 50 HzV2,0002,0002,000
Operating voltage max.Vss250250250
Wire/core diameter 0.4/0.74 mm Wire/core diameter 0.6/1.33 mm Wire/core diameter 0.8/1.45 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
3 8.7 66 2,000 10 96 2,000 12.1 151 2,000
5 9.2 80 2,000 11.7 138 2,000 14.6 229 2,000
10 11.2 128 2,000 14.1 222 2,000 17 358 2,000
15 13.1 180 2,000 16.8 321 2,000 20.1 514 2,000
25 15.4 264 2,000 19.6 471 2,000 25.6 843 2,000
35 16.6 329 2,000 22.6 640 2,000 29.1 1,129 2,000
50 20.1 476 2,000 26.6 897 2,000 33.1 1,530 2,000
75 22.1 629 2,000 30.8 1,264 2,000 40 2,263 1,000
100 26.4 871 2,000 35.2 1,666 1,000 46.4 3,031 1,000
150 29.7 1,188 2,000 41.3 2,388 1,000 56.4 4,511 500
200 34 1,568 1,000 48.2 3,219 1,000 64 5,907 500
300 42.7 2,415 1,000 58.7 4,800 500
400 47.4 3,089 1,000 67.5 6,244 500
500 52.2 3,799 500
600 56.4 4,497 500
800 67.5 6,216 500
