  • Metalické kabely
  • Telekomunikační

TCEPKPFLE, TCEPKPFLEY

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
6
7
1

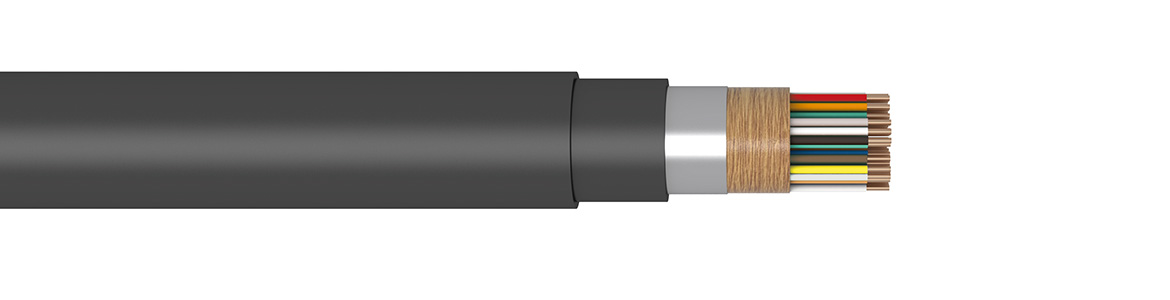

Copper wire

2

Core insulation – foam skin PE

3

Filling material

4

Crepe paper

5

Laminated aluminium foil

6

PE inner jacket, black

7

PVC outer jacket, black

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core. Cable core is filled.

Specification

TP 31.30.13 – KD – 001/94, TP 31.30.13 – KD – 002/94

Application

» for basic phone services in analogue and digital transmission systems
» to be placed in cable ducts, under ground laying and areas without higher danger of mechanical cable damage
» the cables with PVC shield are designed to be placed in areas with fire spread danger

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures –40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.4 0.60.8
Max. loop resistanceΩ/km300.0 133.273.6
Insulation resistance min.GΩ.kmmin. 10min. 10min. 10
Mutual capacitancenF/kmmax. 49max. 49max. 49
Capacity unbalance k1 at 800 HzpF/500 m800800500
Effective test voltage wire/wire at 50 HzV350350350
Effective test voltage wire/shield at 50 HzV700700700
Operating voltageVss250250250
Wire/core diameter 0.4/0.8 mm Wire/core diameter 0.6/1.2 mm Wire/core diameter 0.8/1.6 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
TCEPKPFLE
1 10.5 55 2,000/F 11.0 80 2,000/F 11.5 120 2,000/E
3 12.5 75 2,000/F 14.5 130 2,000/E 15.0 160 2,000/E
5 13.0 100 2,000/F 15.5 165 2,000/E 18.5 265 2,000/D
10 15.0 150 2,000/E 18.0 260 2,000/D 21.0 410 2,000/D
15 17.0 205 2,000/E 21.5 370 2,000/D 24.5 590 1,000/B
20 18.0 250 2,000/D 23.5 470 2,000/D 28.5 775 2,000/A
25 20.0 295 2,000/D 24.5 555 2,000/D 31.5 975 2,000/A
35 21.5 380 2,000/D 29.0 765 2,000/A 36.0 1,310 1,000/B
50 24.5 525 2,000/D 33.0 1,055 1,000/D 41.0 1,795 1,000/A
75 28.0 720 2,000/B 37.5 1,495 1,000/B 48.0 2,630 500/A
100 31.0 940 2,000/A 42.0 1,970 1,000/A 55.5 3,495 500/A
150 36.0 1,355 2,000/B 48.5 2,835 500/B 66.0 5,185 250/B
200 39.0 1,735 2,000/A 56.5 3,800 500/A
250 42.5 2,145 500/B 63.5 4,795 250/B
300 47.5 2,660 500/B 66.5 5,570 250/B
400 56.0 3,605 500/A
500 60.5 4,375 250/B
600 65.5 5,235 250/B
800 76.0 6,805 250/A
TCEPKPFLEY Thickness of PVC sheath is 2.0 mm
1 16.5 125 2,000/E 17.0 150 2,000/E 17.5 175 2,000/E
3 18.5 180 2,000/E 20.5 240 2,000/D 21.0 275 2,000/D
5 19.0 200 2,000/D 21.5 290 2,000/D 24.5 410 2,000/D
10 21.0 265 2,000/D 24.0 400 2,000/D 27.0 580 1,000/B
15 23.0 340 2,000/D 27.5 535 2,000/B 30.5 790 1,000/A
20 24.0 395 2,000/D 29.5 650 1,000/B 34.5 1,000 1,000/D
25 26.0 445 2,000/B 30.5 745 1,000/A 37.5 1,220 1,000/B
35 27.5 540 2,000/B 35.0 985 1,000/D 42.0 1,585 500/A
50 30.5 715 1,000/A 39.0 1,310 1,000/B 47.0 2,115 500/B
75 34.0 925 1,000/A 43.5 1,785 500/A 54.0 3,010 500/B
100 37.0 1,180 1,000/B 48.0 2,295 500/B 61.5 3,930 250/A
150 42.0 1,630 500/B 54.5 3,220 500/B 72.0 5,705 200/A
200 45.0 2,035 500/A 62.5 4,245 250/A
250 48.5 2,480 500/B
300 53.5 3,035 500/B
400 62.0 4,045 250/A
500 66.5 4,850 250/B
600 71.5 5,750 250/A
800 82.0 7,385 250/A
